QARGA PRODUCT

VTOL UAV
Monitoring Platform

Fixed-wing drone with vertical takeoff, AI detection and multi-camera payload for precision aerial monitoring.

View Specifications View Media
4.6 m Wingspan
4 hrs Endurance
28 kg MTOW
20 m/s Cruise Speed
48 MP Main Camera
AI Up to 32 targets
Media

Platform in action

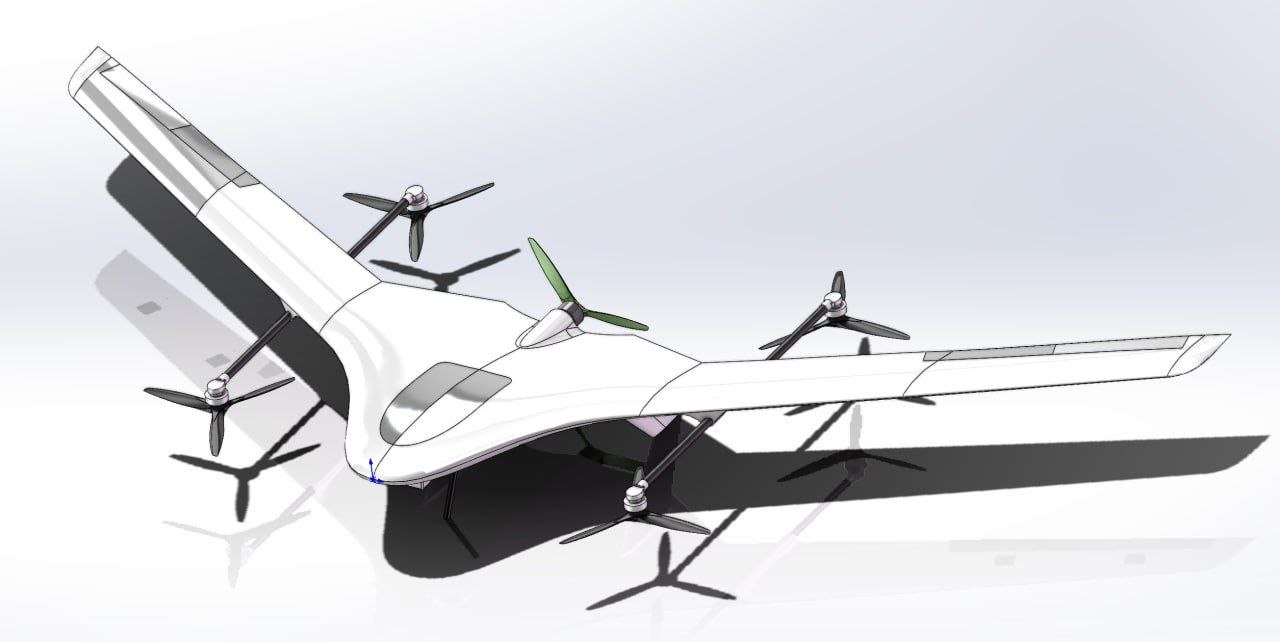

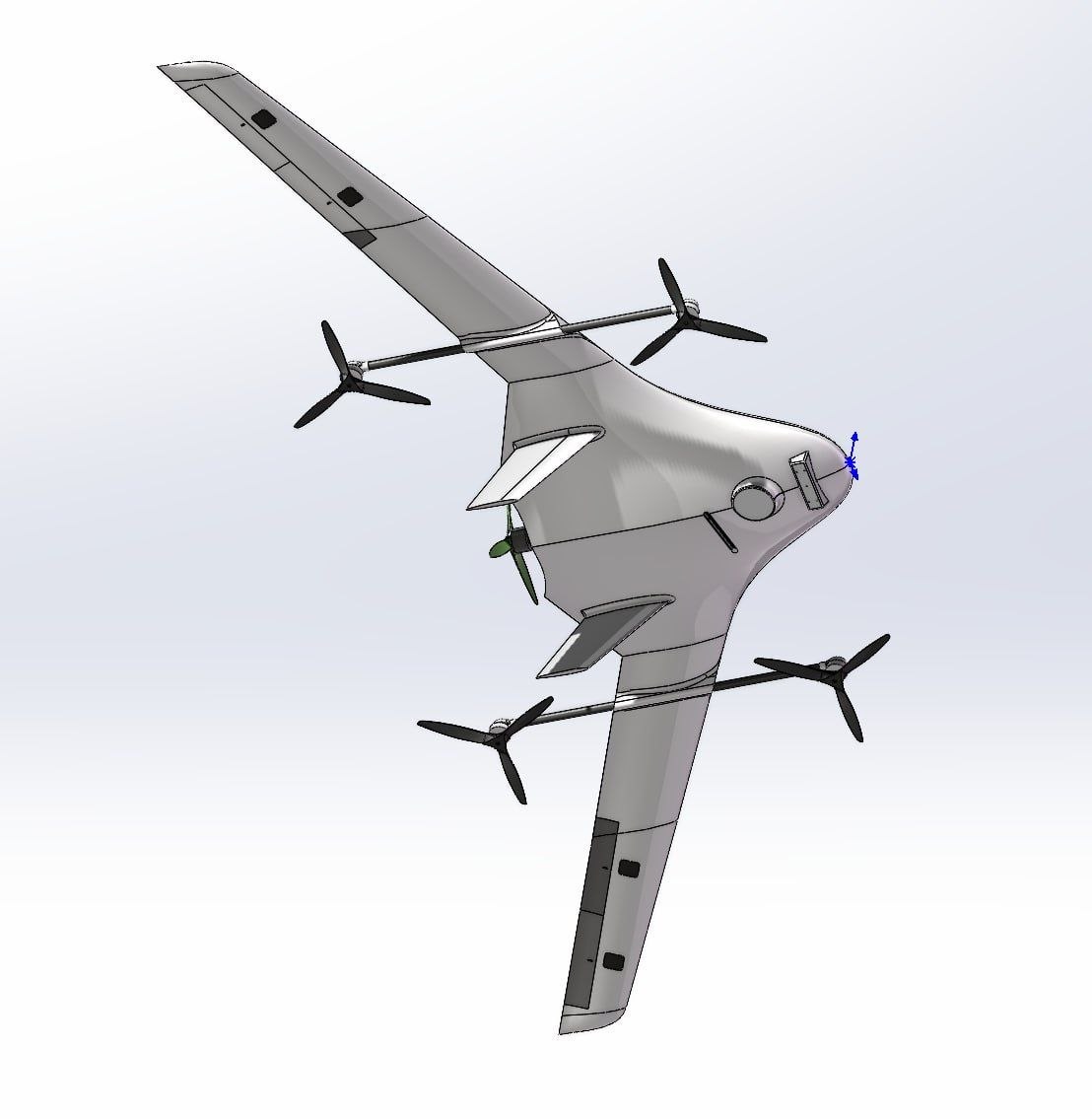

QARGA UAV
QARGA UAV
QARGA UAV
Technical profile

Detailed Specifications

UAV Details

Wingspan
4.6 m
Length
1.20 m
Empty Weight
22 kg
Max Takeoff Weight
28 kg
Cruise Speed
20 m/s
Endurance
4 hours
Flight Controller
Zero one x6pro
Software
Ardupilot

Gimbal & AI Tracking

Pan Rotation
360°
Tilt / Roll
-130° ~ +90° / +40°
Stabilization
≤0.003°
AI Detection
Humans, vehicles
Tracking
Up to 32 targets simultaneously
Min Target Size
16 × 16 px
Gimbal Speed
≥60°/s

Camera System

Thermal Camera

  • Sensor: Uncooled infrared (IR)
  • Resolution: 1280 × 1024
  • Focal Length: 35 mm
  • FOV: 24.7° × 20.0° (+5%)
  • Color Palettes: 6
  • Digital Zoom: 8x
  • Photo/Video: 1280×1024 JPG/MP4
  • Frame Rate: 50 Hz
  • NETD: ≤50 mK

Main & Zoom Camera

  • Sensor: 1/2" CMOS, 48 MP
  • Zoom Focal Length: 7.1-172 mm
  • Optical Zoom: 24x
  • FOV: 48.5°×28.5° - 2.1°×1.2°
  • Photo: 8000×6000 JPG
  • Video: 4K@30fps / 1080p@60fps
  • Wide-Angle FOV: 83.5°
  • Wide-Angle Focal Length: 4.49 mm

Laser & Illuminator

  • Laser Range: 20 - 3000 m (up to 5 km visibility)
  • Max Range: up to 5000 m (15 km visibility)
  • Laser Wavelength: 850 nm
  • IR Illuminator Angle: 8°
  • IR Illuminator Range: ≥100 m

System Specifications

Power Supply
20-28 V
Weight
≤1.3 kg
Dimensions
154 × 170 × 188 mm
Control Interface
UART

Operating Conditions

Operating Temp
-20°C ~ +55°C
Storage Temp
-40°C ~ +60°C

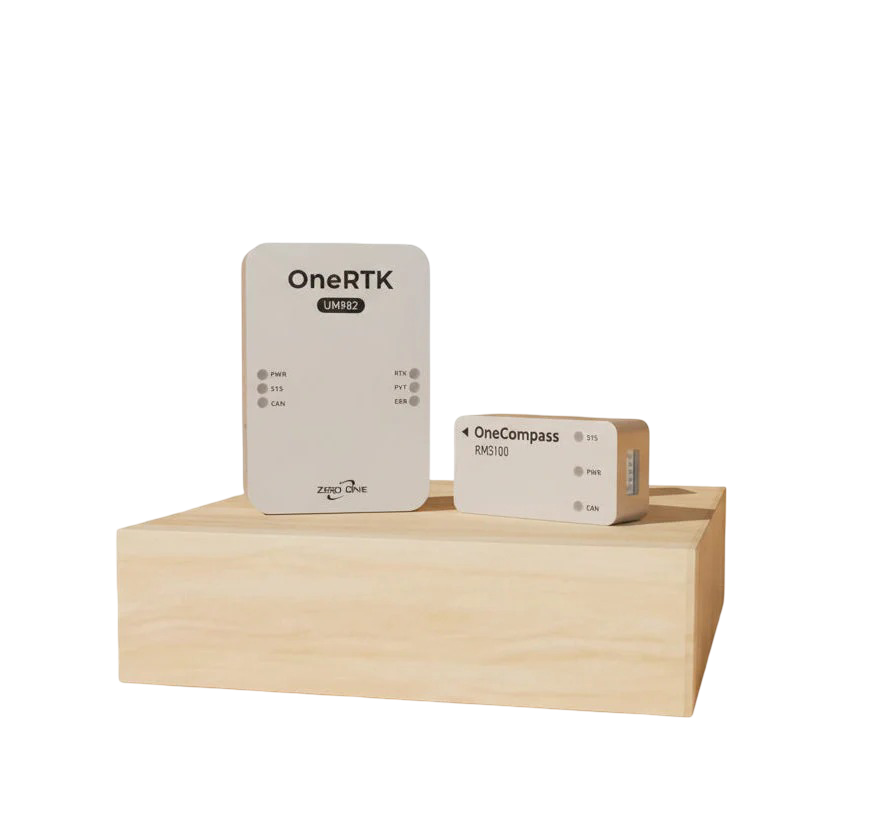

OneRTK UM982 Module
Precision Navigation

Integrated OneRTK UM982

At the heart of the QARGA UAV's positioning capabilities lies the integrated OneRTK UM982 Dual-Antenna RTK module. By leveraging centimeter-level differential positioning and dual-antenna heading estimation, QARGA achieves unmatched flight stability and precision navigation, even in the most challenging electromagnetic environments.

  • Dual-Antenna Heading: Stable and accurate yaw data estimation immune to magnetic interference, completely replacing or backing up traditional magnetic compasses.
  • All-Constellation Tracking: Multi-frequency, all-constellation tracking (GPS, GLONASS, Galileo, BeiDou, QZSS) for a robust and fail-safe positioning lock globally.
  • DroneCAN Protocol: Standardized industrial-grade communication ensuring high-bandwidth, ultra-low latency telemetry and high-rate feedback.
  • Centimeter-Level Positioning: Real-time kinematic (RTK) technology delivering sub-decimeter level flight, hover, and landing accuracy.
  • Dual CAN Ports: Redundant hardware communication interfaces to meet critical safety and security standards.
